Nodal Ninja panoramic head for difficult landscape panos

Hello everyone,

I recently got a panoramic head from Nodal Ninja, and wanted to share my impressions, in case there is someone interested on it.

Here comes a review of it:


Introduction

The Nodal Ninja NN3 MK3 is the latest version of one of the best-known panoramic tripod heads on the market. It is designed for discerning photographers who seek precision, modularity, and reliability without the bulk or weight of larger models.

I’ve had access to a trial version—SKU F3322—that isn’t yet officially available on the Nodal Ninja website, equipped with the premium indexed, click-stop D10 rotary base and an upper rotator, also click-stop at 7.5-degree intervals. This latest component is a new feature that provides a substantial improvement in controlling capture angles when shooting multiple rows, as well as in movement repeatability.

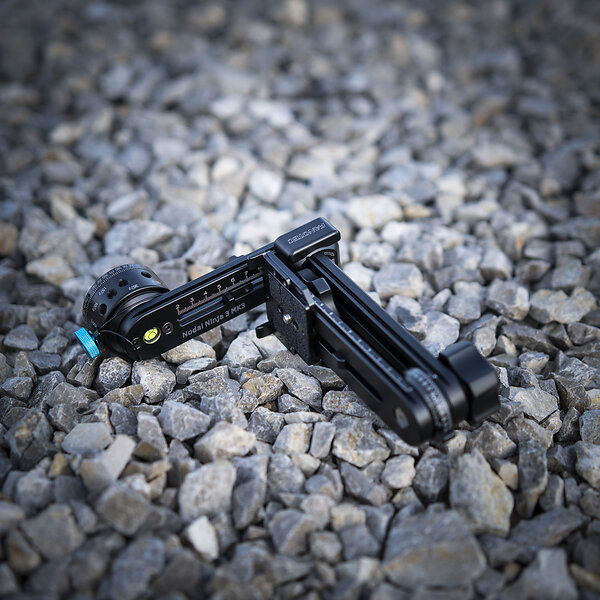

NN3 MK3 folded.


Construction and ergonomics

The NN3 MK3 retains the brand’s DNA: an anodized aluminum construction with CNC machining (an aluminum part created from a solid block) that conveys solidity and precision from the very first touch. All the ball head components fit together with millimeter precision and no play, and the engraved markings allow you to adjust the nodal point with absolute accuracy. Specifically, it consists of three main parts: the D10 rotating base with its famous blue controls, three rails (lower, vertical, and upper), and a threaded clamp to secure the camera (I’ve personally attached an Arca-Swiss-style jaw-type rotating head).

The modular design allows the assembly to be easily disassembled and adjusted to fit different camera bodies and lenses, while maintaining robustness since, for example, the rotating base is fixed to the lower rail. Arca-Swiss system compatibility facilitates integration with third-party tripods and quick-release plates, making field mounting and dismounting fast and secure.

The entire assembly conveys a sense of a robust, precision tool more akin to a scientific instrument than a mere photographic accessory.

NN3 MK3 deployed.


Usability and functionality

In real-world use, the NN3 MK3 proves to be an exceptionally precise and practical tripod head for panoramic photography. On the one hand, the D10 rotating base provides outstanding stability while offering unprecedented flexibility. This rotator has an immense number of detented positions that can be configured according to the needs and lenses we use, and/or the degrees of rotation we want to apply in each case. The upper and lower rails offer a wide range of adjustment, with perfectly legible scales that make calibrating the no-parallax point easy, and with movable locking points. Finally, the new 7.5-degree click-stop upper rotator—one of this version’s greatest achievements—allows for precise, repeatable rotations without the need to constantly check the markings. In practice, this translates into greater fluidity when capturing multi-row panoramas, considerable time savings in complex sessions, and the ability—thanks also to the lower rotator—to create (better) preset stitches during processing and replicate movements.


Performance and accuracy

Although a tripod head doesn’t have optical quality in itself, its precision directly influences the final result of a panorama. In this regard, the NN3 MK3 performs with precision and flawless accuracy, making it easy to perfectly stitch even the most challenging panoramas, such as multi-row ones or those featuring very close-up subjects.

Micrometer scales and a solid locking system allow for precise reproduction of the same configuration, which is essential for stitching or professional panoramic photography, especially if you want to automate the processes. The absence of flex or minor play prevents alignment errors that later result in unwanted seams or distortions.

In my tests with heavy gear (for example, the Sony A7 IV + the Sigma 28mm f/1.4), the ball head has supported the weight without any signs of fatigue or loss of stability. It is, without a doubt, a very well-balanced tool for those seeking portability without sacrificing precision.

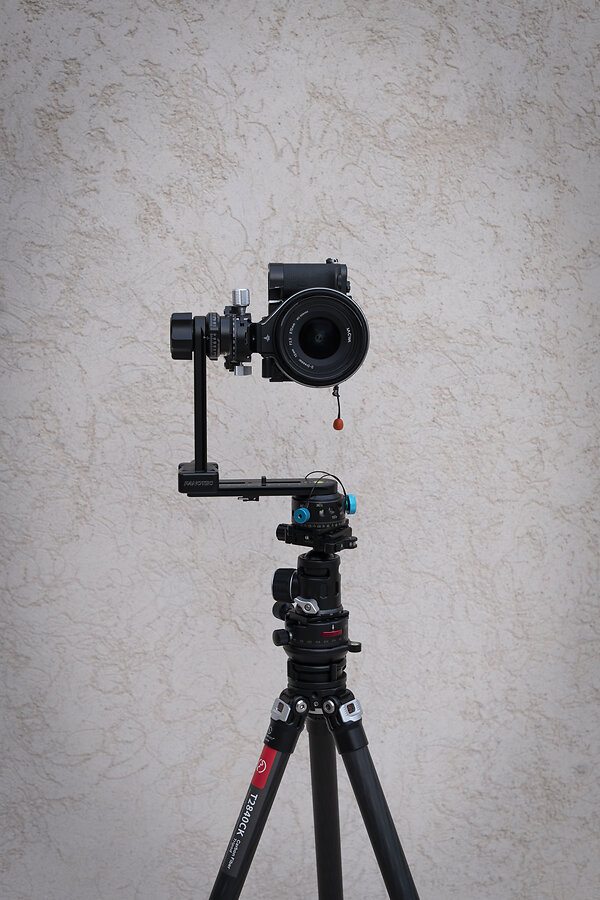

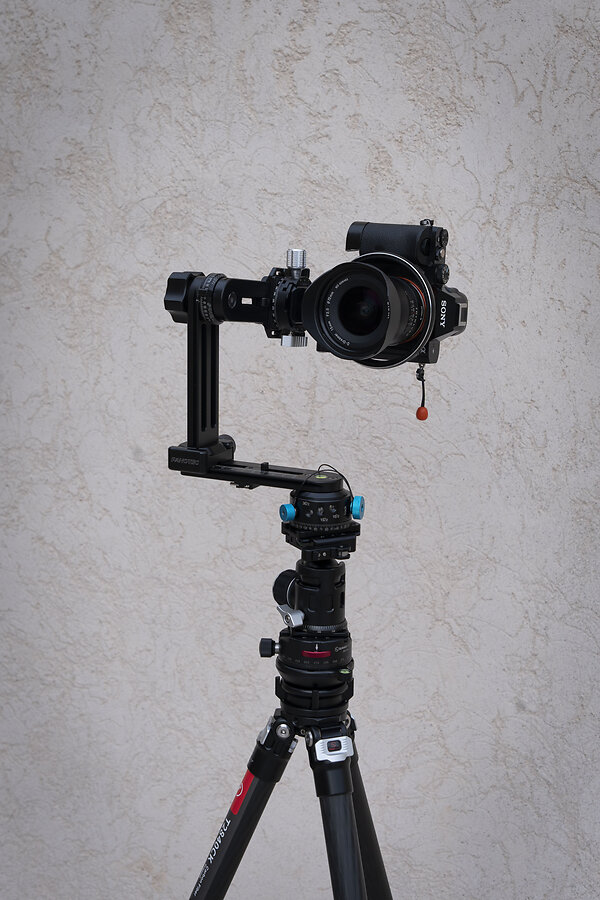

Camera mounted on the NN3 MK3, with the parallax point adjusted to the millimeter.


Strengths:

Professional-grade construction, with CNC machining and premium materials.

Premium rotating base with blue controls: maximum flexibility, fluidity, precision, and excellent friction control.

New top rotator with click stops every 7.5°: ideal for precise multi-row panoramas.

Modular design and full compatibility with the Arca-Swiss system.

Engraved scales, solid locking mechanisms, and an overall professional feel.

Excellent balance of accuracy, size, and price.


Aspects to consider:

The load capacity is 3.5 kg with the D10 base, which is more than enough for most equipment except, possibly, for very heavy setups or those with very long lenses (such as telephoto lenses).

Like all Nodal Ninja products, the NN3 MK3 is the latest version of one of the best-known panoramic tripod heads on the market. It is designed for discerning photographers who seek precision, modularity, and reliability without the bulk or weight of larger models.

I’ve had access to a trial version—SKU F3322—that isn’t yet officially available on the Nodal Ninja website, equipped with the premium indexed, click-stop D10 rotary base and an upper rotator, also click-stop at 7.5-degree intervals. This latest component is a new feature that provides a substantial improvement in controlling capture angles when shooting multiple rows, as well as in movement repeatability.


Conclusion

The Nodal Ninja NN3 MK3 with D10 base and 7.5° click-stop rotator is a precision tool designed for panoramic photographers who value build quality, accuracy, and repeatability.

This trial version previews what appears to be one of the most significant improvements in the lineup: more control, greater smoothness, and enhanced versatility, all in a compact, portable package.

In summary, the NN3 MK3 is a professional-grade panoramic head in a compact form factor, ideal for landscape, architectural, astrophotography, or 360° panoramic photographers seeking reliability and precision without having to invest in larger or more expensive models.
If this pre-production unit reflects the performance of the final model, Nodal Ninja has one of the best compact panoramic heads on the market on its hands.

Panorama with nearby objects taken with the NN3 MK3
